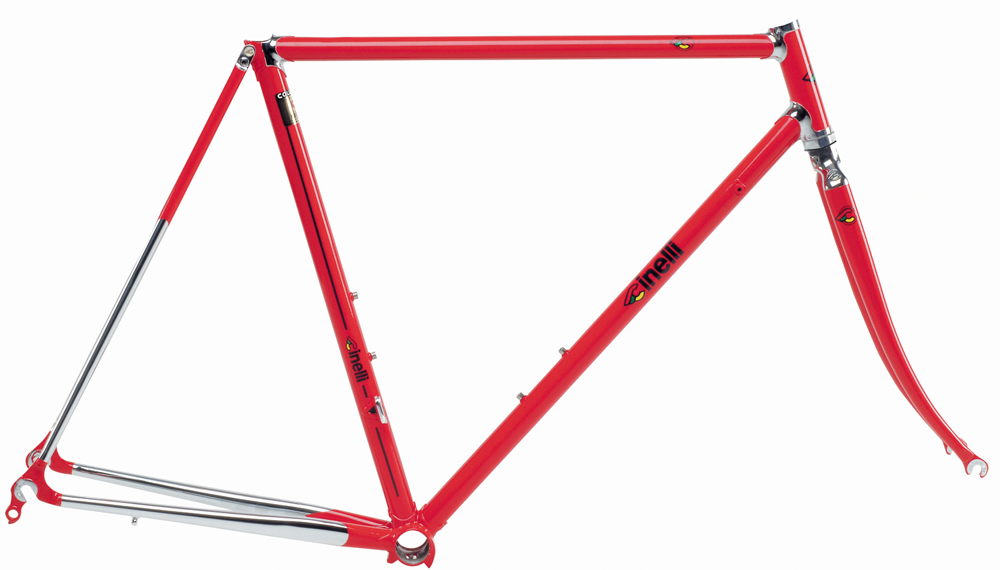

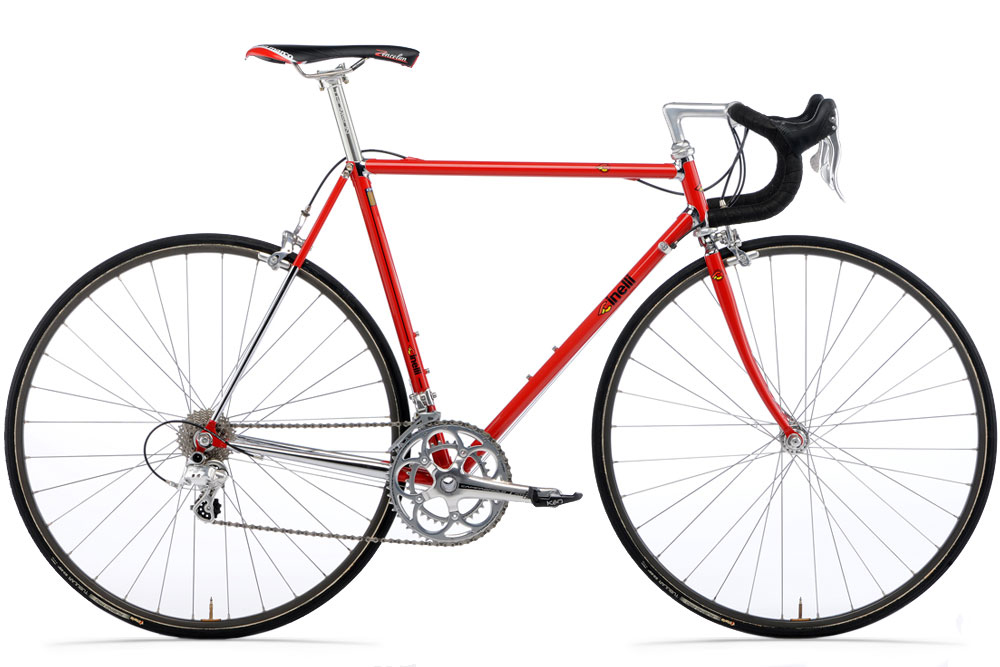

Cinelli Supercorsa

Farben/colors: - Bianco Perla - - Azzuro Laser-  - Grigio Titanio-   - Verde Jaguar-

                         - Nero -               - Blu China-        - Giallo-                - Rosso Ferrari -

Rahmengrößen/sizes: 480mm - 640mm (jeweils 10mm!)

Rohrsatz/tube set: Columbus

Gabel/fork: Columbus - 1"

Preis/price: 2290,00 Euro. Rahmen + Gabel!

Die Legende in Stahl! / The legend in steel!

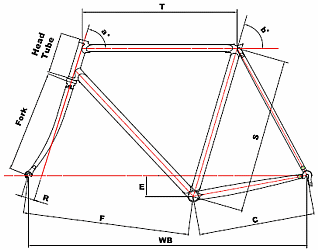

                                             Abmessungen und Geometrie - Supercorsa









Die Tabellenmaße gelten für den "Supercorsa" - Rahmen!

             Größe/size     T         a°       b°       R        C        F        WB      E
    480 510mm   72°  74,5° 50mm 401mm 573mm 965mm 66mm
    490 515mm   72°  74,5° 50mm 402mm 573mm 965mm 69mm
    500 520mm  72,5°  74,5° 50mm 402mm 570mm 962mm 70mm
    510 525mm  72,5°  74° 50mm 402mm 572mm 963mm 73mm
    520 535mm  72,5°  74° 50mm 403mm 572mm 964mm 73mm
    530 540mm  73°  74° 45mm 405mm 578mm 972mm 73mm
    540 545mm  73°  73,7° 45mm 405mm 578mm 972mm 73mm
    550 550mm  73°  73,7° 45mm 405mm 586mm 980mm 73mm
    560 560mm  73°  73,5° 45mm 405mm 587mm 981mm 73mm
    570 565mm  73°  73,5° 45mm 406mm 588mm 983mm 73mm
    580 570mm  73°  73,1° 45mm 407mm 589mm 985mm 73mm
    590 572mm  73°  73° 45mm 408mm 595mm 992mm 73mm
    600 580mm  73°  73° 45mm 409mm 599mm 997mm 73mm
    610 580mm  73°  73° 45mm 409mm 599mm 997mm 73mm
    620 590mm 73° 73° 45mm 409mm 606mm 1004mm 73mm
    630 590mm 73° 73° 45mm 410mm 606mm 1005mm 73mm
    640 595mm  73°  73° 45mm 411mm 610mm 1010mm 73mm
