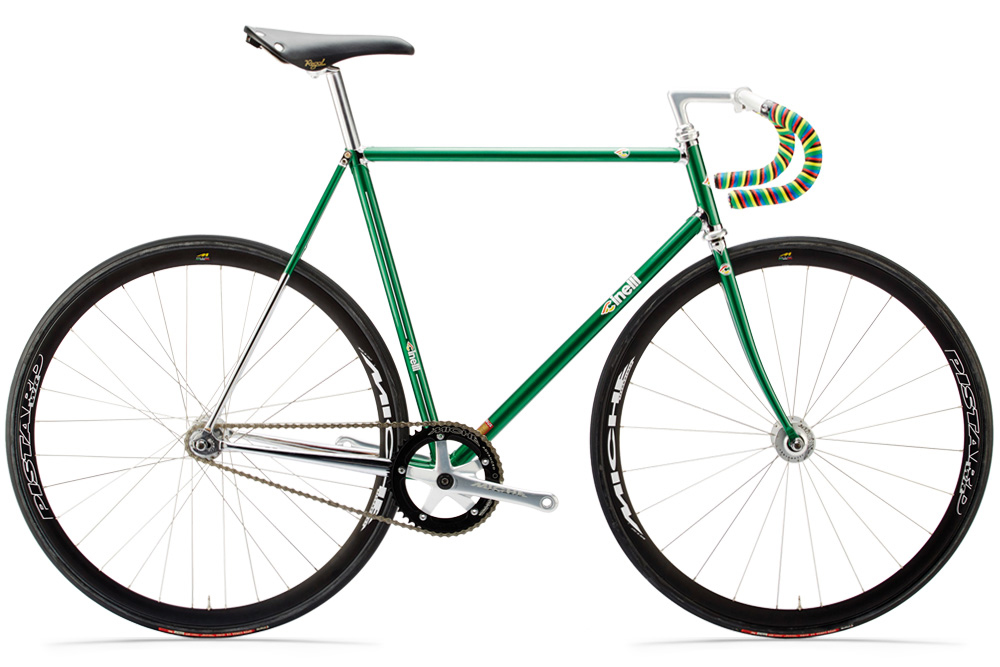

Cinelli Supercorsa - Pista

Farben/colors: - Bianco Perla - - Azzuro Laser-  - Grigio Titanio-   - Verde Jaguar-

                         - Nero -               - Blu China-        - Giallo-                - Rosso Ferrari -

Rahmengrößen/sizes: 490mm - 610mm (jeweils 10mm!)

Rohrsatz/tube set: Columbus - Stahl/Columbus steel

Gabel: Columbus Stahl - 1"/Columbus steel - 1"

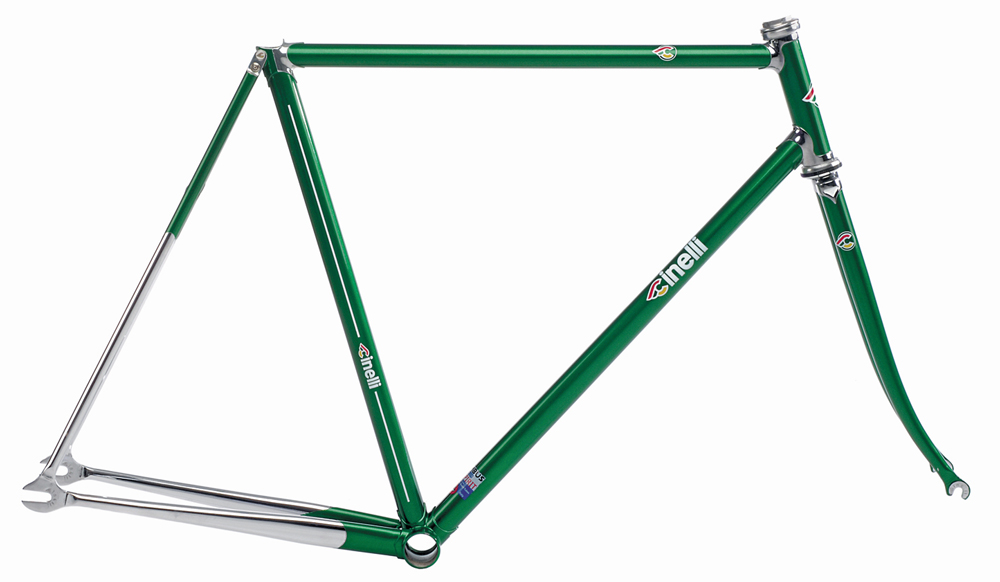

Preis/price: 2290,00 Euro - Rahmen + Gabel!/Frame + fork!

Die Legende als Bahnrahmen/ The legend for the track!

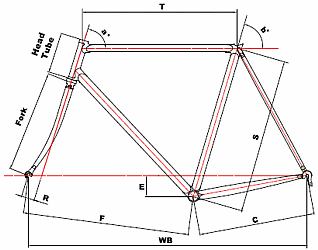

                                 Abmessungen und Geometrie - Supercorsa - pista









Die Tabellenmaße gelten für den - "Supercorsa - pista" - Rahmen!

             Größe/size     T         a°       b°       R        C        F        WB      E
    490 515mm   72°  75° 35mm 388mm 567mm 946mm 60mm
    500 520mm  73°  75 35mm 388mm 567mm 946mm 60mm
    510 525mm  72,5°  75° 35mm 388mm 568mm 948mm 60mm
    520 535mm  72,5°  75° 35mm 388mm 569mm 949mm 60mm
    530 540mm  72,5°  74,5° 35mm 388mm 571mm 951mm 60mm
    540 545mm  74°  74,5° 35mm 388mm 572mm 952mm 60mm
    550 550mm  74°  74,5° 35mm 388mm 575mm 955mm 60mm
    560 555mm  74,5°  74,5° 35mm 388mm 578mm 958mm 60mm
    570 560mm  74,5°  74° 35mm 390mm 580mm 962mm 60mm
    580 565mm  74,5°  74° 35mm 390mm 585mm 967mm 60mm
    590 570mm  75°  74° 35mm 390mm 583mm 965mm 60mm
    600 575mm  75°  74° 35mm 390mm 586mm 968mm 60mm
    610 580mm  75°  74° 35mm 390mm 592mm 974mm 60mm
